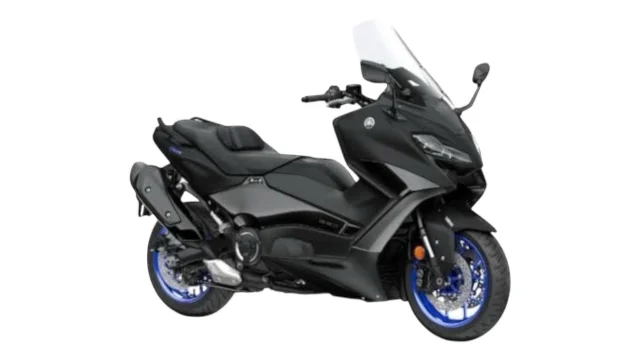

Yamaha TMAX 560 ABS

779,000.00

The Yamaha TMAX 560 ABS is a premium maxi-scooter available in the Philippines, priced at ₱779,000. It features a 560cc liquid-cooled, parallel-twin engine producing around 46.9 horsepower and 55.7 Nm of torque, paired with a CVT automatic transmission and belt final drive. Designed for both performance and comfort, it has a lightweight aluminum frame, telescopic front forks, and a swingarm rear suspension.

Its sporty design is matched by advanced safety features such as dual front and single rear disc brakes with ABS, as well as traction control. The scooter rides on 15-inch tubeless tires and weighs about 218 kg with a seat height of 800 mm, making it suitable for urban commuting and longer trips. It includes modern features like full LED lighting, digital instrumentation, keyless start, a USB charging port, and an immobilizer. While the standard ABS model doesn’t have Bluetooth, those looking for more tech might consider the TechMax variant.

Overall, the TMAX 560 ABS combines power, practicality, and high-end features, making it one of the most capable and luxurious scooters on the Philippine market.

Category: Tags: ,
General
Model Yamaha TMAX 560 ABS
Colors Available Black
Category Maxi‑scooter / Scooter
Engine
Type Liquid-cooled, 4‑stroke, DOHC, parallel‑twin
Displacement ~562 cc (commonly rounded to 560 cc)
Bore x Stroke 70.0 mm × 73.0 mm
Compression Ratio 10.9 : 1
Max Power Around 47 hp
Max Torque 55.7 Nm
Fuel System Fuel Injection
Starter Electric
Lubrication Dry sump system
Engine Oil Capacity Approximately 3.5 L
Transmission
Gearbox CVT (V‑belt automatic)
Final Drive Belt drive
Dimensions
Overall Length ~2195 mm (commonly rounded to 2200 mm)
Overall Width ~780 mm
Overall Height Around 1420–1470 mm (adjustable windscreen variant)
Seat Height 800 mm
Ground Clearance ~125 mm
Wheelbase 1575 mm
Kerb Weight ~218 kg
Fuel Tank Capacity 15 L
Chassis & Suspension
Frame Type Aluminium CF die‑cast (lightweight chassis)
Front Suspension Telescopic forks, ~120 mm travel
Rear Suspension Swingarm (link) suspension, ~117 mm travel
Brakes & Tires
Front Brake Dual hydraulic discs (~267 mm), ABS
Rear Brake Single hydraulic disc (~282 mm), ABS
Front Tire 120/70‑15, tubeless
Rear Tire 160/60‑15, tubeless
Tire Type Radial, Tubeless
Electronics & Features
ABS Standard ABS included
Intrument Cluster Digital display (basic); Techmax variant has 7‑inch TFT (not ABS)
Lighting Full LED headlights and tail lights
Bluetooth Connectivity Not for standard ABS model; Techmax variant may include smartphone connectivity
Additional Features Keyless Start, USB Charging Port, Traction Control, Alarm System, Pass Switch, Immobilizer
Price Philippines
MSRP ₱779,000
